NJM2368 Datasheet, Ic, New Japan Radio

NJM2368 Features

  • Ic
  • Operating Voltage (3.6V ~ 32V)
  • Wide Oscillator Range (5kHz ~ 350 kHz)
  • Soft-Start function.
  • Under Voltage Lockouts (U.V.L.O.)
  • Bipo

PDF File Details

Part number:

NJM2368

Manufacturer:

New Japan Radio

File Size:

115.38kb

Download:

📄 Datasheet

Description:

Switching regulator control ic. The NJM2368 is a high speed switching regulator control IC which can operate at low voltage. It uses a totempole output circuit , so

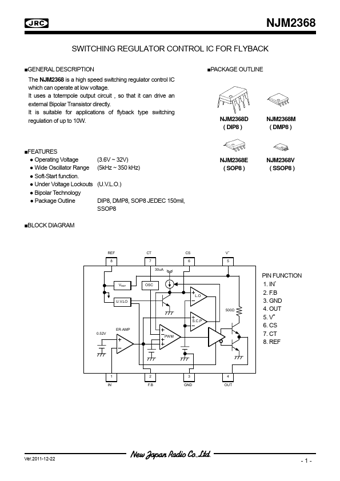

Datasheet Preview: NJM2368 📥 Download PDF (115.38kb)
Page 2 of NJM2368 Page 3 of NJM2368

NJM2368 Application

  • Applications of flyback type switching regulation of up to 10W.
  • PACKAGE OUTLINE NJM2368D ( DIP8 ) NJM2368M ( DMP8 )
  • FEATURES
