NJM2346 Datasheet, Ic, JRC

NJM2346 Features

  • Ic
  • Low Quiescent Current
  • Precision AMP.
  • Operating Voltage
  • Precision Voltage Reference
  • PC pin Sink Current
  • Bipolar Technology

PDF File Details

Part number:

NJM2346

Manufacturer:

JRC

File Size:

115.87kb

Download:

📄 Datasheet

Description:

Voltage and current control ic. The NJM2346 is a low power operation battery charger IC. It includes a voltage reference and two operational amplifiers for voltage a

Datasheet Preview: NJM2346 📥 Download PDF (115.87kb)

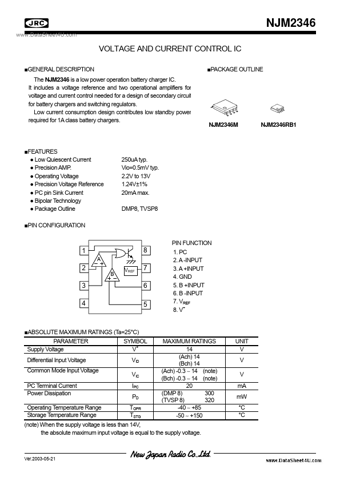

Page 2 of NJM2346 Page 3 of NJM2346

NJM2346 Application

  • Applications PC R5 VI CONTROL IC PC R1 R3 2 3 R2 RSC R4 4 8 A 1 NJM2346 B VREF=1.24V±1% Battery 5 6 7 R6 Ver.2003-05-21 -3- NJM2346 www.DataShe
