NJM2367 Datasheet, Ic, New Japan Radio

NJM2367 Features

  • Ic qOperating Voltage (7.5V to 40V) qPWM form Switching Power Supply Control qInternal High Power Transistor 5.5A (min.) qFixed Frequency Oscillator 72kHz (typ.) qInternal Current Sense Am

PDF File Details

Part number:

NJM2367

Manufacturer:

New Japan Radio

File Size:

117.28kb

Download:

📄 Datasheet

Description:

5.5a high power dc/dc converter controller ic. The NJM2367 is a high power DC/DC converter controller inducing basic function of DC/DC converter controller, which consists precisio

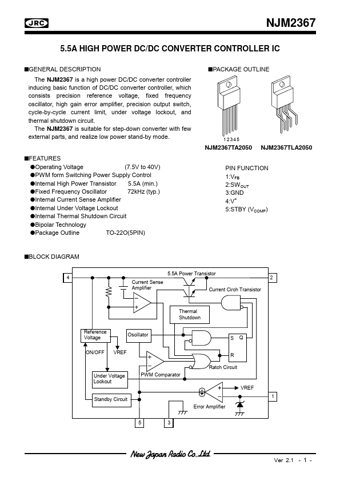

Datasheet Preview: NJM2367 📥 Download PDF (117.28kb)
Page 2 of NJM2367 Page 3 of NJM2367

NJM2367 Application

  • Applications Step-Down Converter
  • SBD Vin L 4 Vout NJM2367 3 5 CF 1 2 R2 SBD Cout Cin RF R1 1) 5V and higher converter, the applicatio
