2450FB39A0150 Datasheet - Johanson Technology

2450FB39A0150 2.45 GHz Balun / Filter Combination

Preliminary "High Frequency Ceramic Solutions" P/N 2450FB39A0150 Page 1 of 2 2.45 GHz Balun/Filter Combination Detail Specification: 01/06/09 General Specifications Part Number Frequency (MHz) Unbalanced Impedence Balanced Impedence Insertion Loss Return Loss Phase Difference Amplitude Difference 2450FB39A0150 2400 - 2500 50 Ω 150 Ω 2.5 dB max. 9.5 dB min. 180° ± 10 1.0 dB max. Reel Quantity Power Capacity Operating Temperature Storage Temperature Attenuation (dB) 35 min.@ 880~960MHz 30 min.@.

2450FB39A0150_JohansonTechnology.pdf

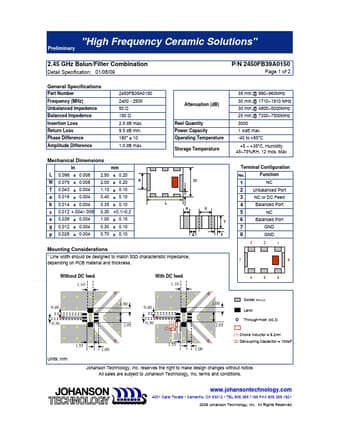

Preview of 2450FB39A0150 PDF
2450FB39A0150 Datasheet Preview Page 2

Datasheet Details

Part number:

2450FB39A0150

Manufacturer:

Johanson Technology

File Size:

139.12 KB

Description:

2.45 ghz balun / filter combination.
