2450FB39K001 Datasheet - Johanson Technology

2450FB39K001 2.45 GHz Balun / Filter Combination

"High Frequency Ceramic Solutions" 2.45 GHz Balun / Filter Combination Detail Specification: 12/19/05 P/N 2450FB39K001 Page 1 of 2 General Specifications Part Number Frequency (MHz) Unbalanced Impedence Differential Balanced Imp. Insertion Loss Return Loss Phase Difference Amplitude Difference 2450FB39K001 2400~2500 50 Ω 22+j100 Conjugate match to CSR chipset 45 min.@ 880~960MHz 38 min.@1710~1880 MHz 35 min.@1880~1990MHz 20 min.@2110~2170MHz 25 min.@4800~5000MHz 30 typ.@7200~7500MHz Attenuat.

2450FB39K001_JohansonTechnology.pdf

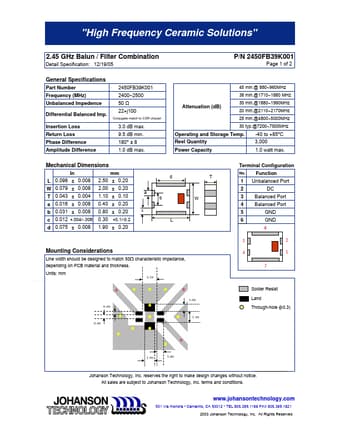

Preview of 2450FB39K001 PDF
2450FB39K001 Datasheet Preview Page 2

Datasheet Details

Part number:

2450FB39K001

Manufacturer:

Johanson Technology

File Size:

145.67 KB

Description:

2.45 ghz balun / filter combination.
