2450FB39C100 Datasheet - Johanson Technology

2450FB39C100 2.45 GHz Balun / Filter Combination

PRELIMINARY 2.45GHz Balun/Filter Combination Detail Specification: 06/05/07 General Specifications Part Number Frequency (MHz) Unbalanced Impedence Balanced Impedence Insertion Loss Return Loss Phase Difference Amplitude Difference 2450FB39C100 2400 - 2500 50 Ω 100 Ω 3.0 dB max. 9.5 dB min. 180° ± 8 1.0 dB max. Operating + Storage Temp P/N 2450FB39C100 Page 1 of 2 45 min.@ 880~960MHz 38 min.@1710~1880 MHz Attenuation (dB) 35 min.@1880~1990 MHz 20 min.@2110~2170 MHz 30 min.@4800~5000MHz 30 ref..

2450FB39C100_JohansonTechnology.pdf

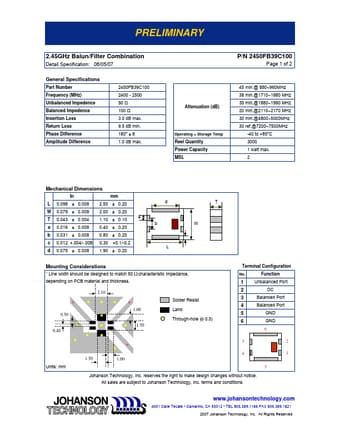

Preview of 2450FB39C100 PDF
2450FB39C100 Datasheet Preview Page 2

Datasheet Details

Part number:

2450FB39C100

Manufacturer:

Johanson Technology

File Size:

136.35 KB

Description:

2.45 ghz balun / filter combination.
