2450FB39B100 Datasheet - Johanson Technology

2450FB39B100 2.45 GHz Balun / Filter Combination

"High Frequency Ceramic Solutions" 2.45 GHz Balun / Filter Combination Detail Specification: 10/23/03 P/N 2450FB39B100 Page 1 of 2 General Specifications Part Number Frequency (MHz) Unbalanced Impedence Differential Balanced Imp. Insertion Loss Return Loss Phase Difference Amplitude Difference 2450FB39B100 2400~2500 50 Ω 100 Ω 2.0 dB max. 9.5 dB min. 180° ± 10 1.0 dB max. Reel Quantity Power Capacity Attenuation (dB) 35 min.@ 880~960MHz 30 min.@1710~1910 MHz 30 min.@4800~5000MHz 25 min.@7200~7.

2450FB39B100_JohansonTechnology.pdf

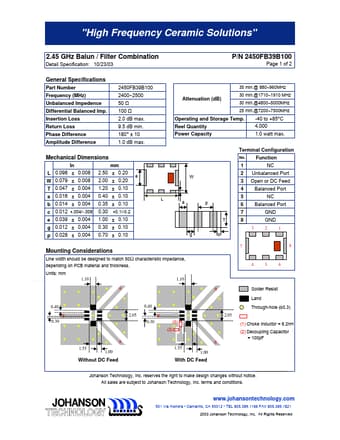

Preview of 2450FB39B100 PDF
2450FB39B100 Datasheet Preview Page 2

Datasheet Details

Part number:

2450FB39B100

Manufacturer:

Johanson Technology

File Size:

130.02 KB

Description:

2.45 ghz balun / filter combination.
