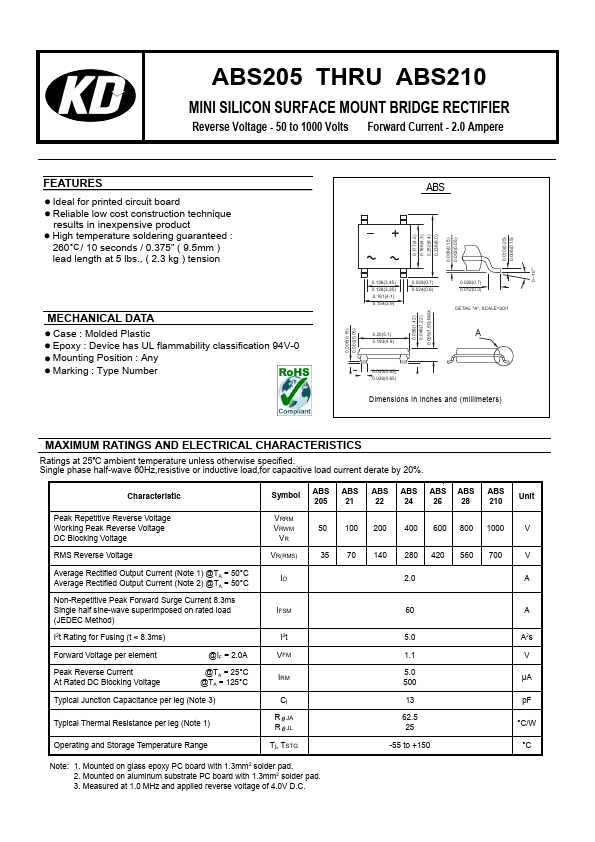

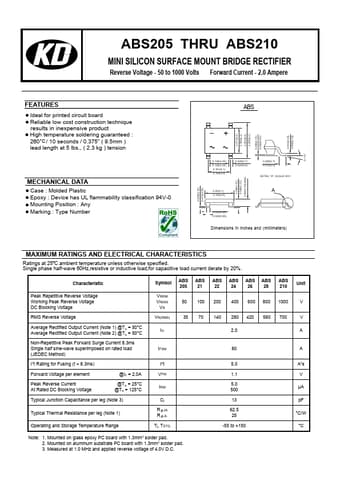

ABS210, ABS205 MINI SILICON SURFACE MOUNT BRIDGE RECTIFIER

Description

ABS205 THRU ABS210 MINI SILICON SURFACE MOUNT BRIDGE RECTIFIER Reverse Voltage - 50 to 1000 Volts Forward Current - 2.0 Ampere 0.010(0.25) 0.006(0.15.

📥 Download Datasheet

ABS210 Datasheet Preview — This datasheet PDF includes multiple part numbers: ABS210, ABS205. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: ABS210, ABS205
Manufacturer: KD
File Size: 822.37 KB
Datasheet: ABS205-KD.pdf
Description: MINI SILICON SURFACE MOUNT BRIDGE RECTIFIER
Note: This datasheet PDF includes multiple part numbers: ABS210, ABS205.
Please refer to the document for exact specifications by model.

Features

* Ideal for printed circuit board
* Reliable low cost construction technique results in inexpensive product
* High temperature soldering guaranteed : 260°C / 10 seconds / 0.375” ( 9.5mm ) lead length at 5 lbs. , ( 2.3 kg ) tension MECHANICAL DATA
* Case : Molded Plastic
* Epoxy :
