📥 Download Datasheet
This datasheet PDF includes multiple part numbers: ABS22, ABS205. Please refer to the document for exact specifications by model.
Datasheet Details
- Part number
- ABS22, ABS205
- Manufacturer
- KD
- File Size
- 822.37 KB
- Datasheet
-
ABS205-KD.pdf
- Description
-

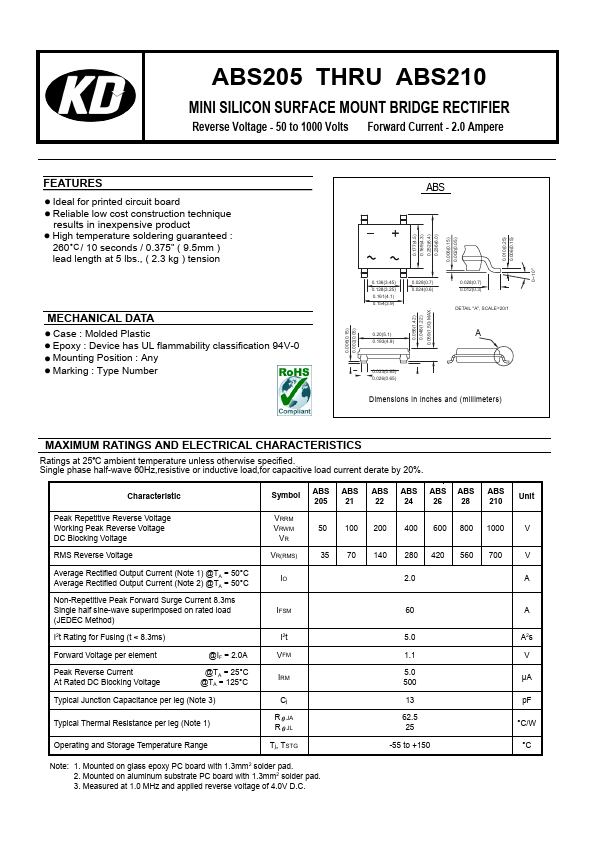

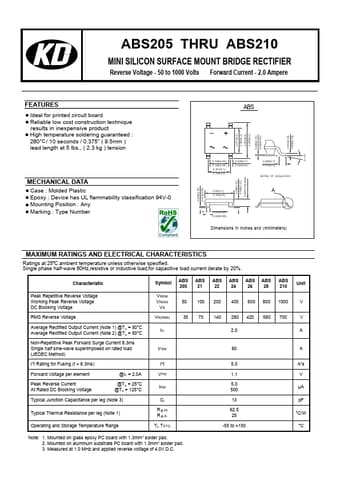

MINI SILICON SURFACE MOUNT BRIDGE RECTIFIER
- Note
- This datasheet PDF includes multiple part numbers: ABS22, ABS205.
Please refer to the document for exact specifications by model.
ABS22 Product details
Features
- Ideal for printed circuit board.
- Reliable low cost construction technique
results in inexpensive product.
- High temperature soldering guaranteed :
260°C / 10 seconds / 0.375” ( 9.5mm ) lead length at 5 lbs. , ( 2.3 kg ) tension.
