KIA6268P DUAL RECORD/PLAY PRE-AMPLIFIER

KIA6268P Description

SEMICONDUCTOR TECHNICAL DATA KIA6268P BIPOLAR LINEAR INTEGRATED CIRCUIT DUAL RECORD/PLAY PRE-AMPLIFIER The KIA6268P is a dual preamplifier with ALC .

KIA6268P Features

* Built-in ALC detector circuit. Built-in muting circuit. Operating supply voltage range : VCC=6 15V. d DP A 16 9 18 B TΘ DIM MILLIMETERS A 19.3+_ 0.2 B 6.45+_ 0.2 D 1.52+_ 0.1 d 0.46+_ 0.1 G 0.50 MIN H 3.8+_ 0.3 L 3.3+_ 0.3 P 2.54 T 0.25+0.1/-0.05 W 7.62 Θ 0 - 15 MAXIMUM RATINGS (Ta=25 ) CHARAC

📥 Download Datasheet

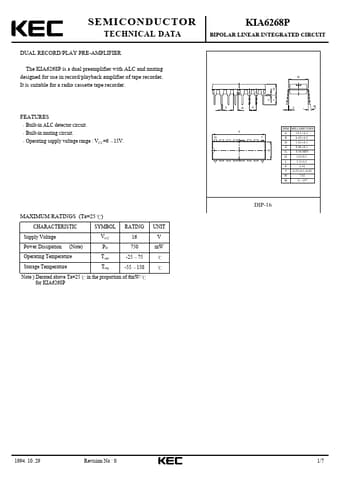

Preview of KIA6268P PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
KIA6268P
Manufacturer
KEC
File Size
125.77 KB
Datasheet
KIA6268P-KEC.pdf
Description
DUAL RECORD/PLAY PRE-AMPLIFIER
