KIA6269P 1.2W DUAL AUDIO POWER AMPLIFIER

KIA6269P Description

SEMICONDUCTOR TECHNICAL DATA KIA6269P BIPOLAR LINEAR INTEGRATED CIRCUIT 1.2W DUAL AUDIO POWER AMPLIFIER KIA6269P is dual audio power amplifier desig.

KIA6269P Features

* High output power : POUT=1.0W(Typ. ) (VCC=6V, RL=4 , f=1kHz, THD=10%). Built-in thermal shut down protection circuit. Small pop noise at power supply ON. Soft clip. Wide operating supply voltage range : VCC=4.5 9.0V. MAXIMUM RATING (Ta=25 ) CHARACTERISTIC SYMBOL RATING Supply Voltage VCC 14 Pow

📥 Download Datasheet

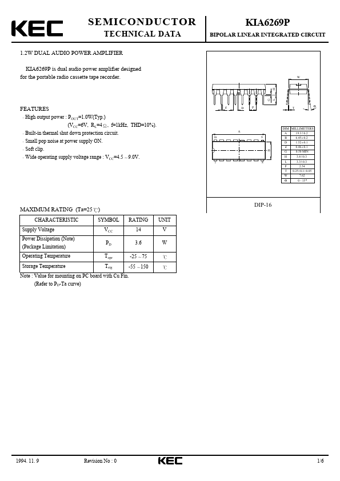

Preview of KIA6269P PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
KIA6269P
Manufacturer
KEC
File Size
104.13 KB
Datasheet
KIA6269P-KEC.pdf
Description
1.2W DUAL AUDIO POWER AMPLIFIER
