KML0D4N20V - N-Channel MOSFET

KML0D4N20V Description

SEMICONDUCTOR TECHNICAL DATA General .
It s mainly suitable for Load Switching Cell Phones, Battery Powered Systems and Level-Shifter.

KML0D4N20V Features

* VDSS=20V, ID=0.4A Drain-Soure ON Resistance : RDS(ON)=0.70 @ VGS=4.5V : RDS(ON)=0.85 @ VGS=2.5V : RDS(ON)=1.25 @ VGS=1.8V Super High Dense Cell Design KML0D4N20V N-Ch Trench MOSFET MAXIMUM RATING (Ta=25 ) CHARACTERISTIC SYMBOL N-Ch Drain-Source Voltage Gate-Source Voltage Drain Current DC @T

📥 Download Datasheet

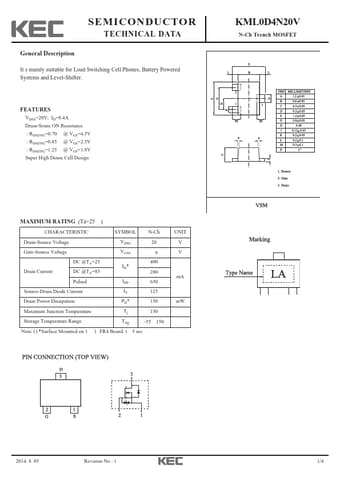

Preview of KML0D4N20V PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
KML0D4N20V
Manufacturer
KEC
File Size
776.40 KB
Datasheet
KML0D4N20V-KEC.pdf
Description
N-Channel MOSFET
