KML0D4P20E - P-Channel MOSFET

KML0D4P20E Description

SEMICONDUCTOR TECHNICAL DATA General .
It s Mainly Suitable for Load Switching Mobile Phones, Battery Powered Systems and Level-Shifter.

KML0D4P20E Features

* VDSS= -20V, ID= -0.35A Drain-Soure ON Resistance : RDS(ON)=1.2 @ VGS= -4.5V : RDS(ON)=1.6 @ VGS= -2.5V : RDS(ON)=2.7 @ VGS= -1.8V ESD Protection diode. KML0D4P20E P-Ch Trench MOSFET MAXIMUM RATING (Ta=25 ) CHARACTERISTIC SYMBOL P-Ch UNIT Drain-Source Voltage Gate-Source Voltage VDSS -20 V VGS

📥 Download Datasheet

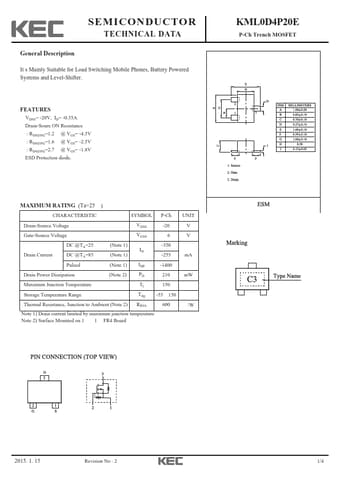

Preview of KML0D4P20E PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
KML0D4P20E
Manufacturer
KEC
File Size
782.98 KB
Datasheet
KML0D4P20E-KEC.pdf
Description
P-Channel MOSFET
