KML0D3P20V - P-Channel MOSFET

KML0D3P20V Description

SEMICONDUCTOR TECHNICAL DATA General .
It s Mainly Suitable for Load Switching Cell Phones, Battery Powered Systems and Level-Shifter.

KML0D3P20V Features

* VDSS=-20V, ID=-0.3A Drain-Soure ON Resistance : RDS(ON)=1.2 : RDS(ON)=1.6 : RDS(ON)=2.7 @ VGS=-4.5V @ VGS=-2.5V @ VGS=-1.8V KML0D3P20V P-Ch Trench MOSFET MAXIMUM RATING (Ta=25 ) CHARACTERISTIC SYMBOL Drain-Source Voltage Gate-Source Voltage Drain Current DC @TA=25 DC @TA=85 Pulsed Source

📥 Download Datasheet

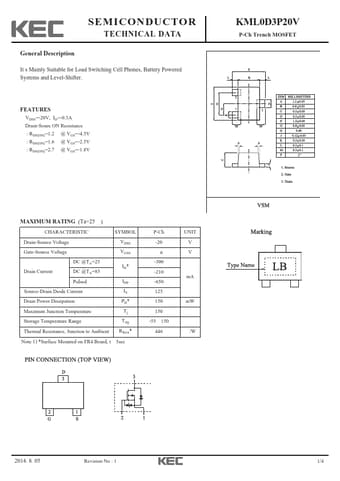

Preview of KML0D3P20V PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
KML0D3P20V
Manufacturer
KEC
File Size
782.10 KB
Datasheet
KML0D3P20V-KEC.pdf
Description
P-Channel MOSFET
