KML0D6NP20EA - N and P-Ch Trench MOSFET

KML0D6NP20EA Description

SEMICONDUCTOR TECHNICAL DATA General .
It’s Mainly Suitable for Load Switching Cell Phones, Battery Powered Systems and Level-Shifter.

KML0D6NP20EA Features

* N-Channel : VDSS=20V, ID=600mA (RDS(ON)=0.70 : VDSS=20V, ID=500mA (RDS(ON)=0.85 : VDSS=20V, ID=350mA (RDS(ON)=1.25 P-Channel : VDSS=-20V, ID=-400mA (RDS(ON)=1.2 : VDSS=-20V, ID=-300mA (RDS(ON)=1.6 : VDSS=-20V, ID=-150mA (RDS(ON)=2.7 @ VGS=-4.5V). @ VGS=-2.5V). @ VGS=-1.8V). @ VGS=4.5V). @ VGS=2.5V).

📥 Download Datasheet

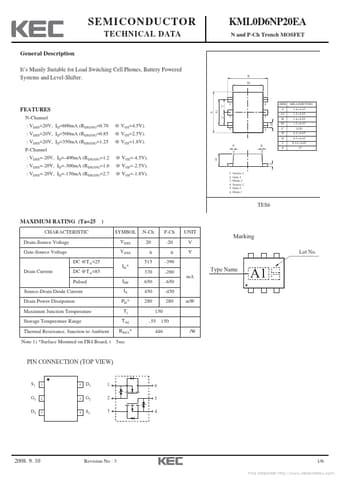

Preview of KML0D6NP20EA PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
KML0D6NP20EA
Manufacturer
KEC
File Size
81.84 KB
Datasheet
KML0D6NP20EA_KEC.pdf
Description
N and P-Ch Trench MOSFET
