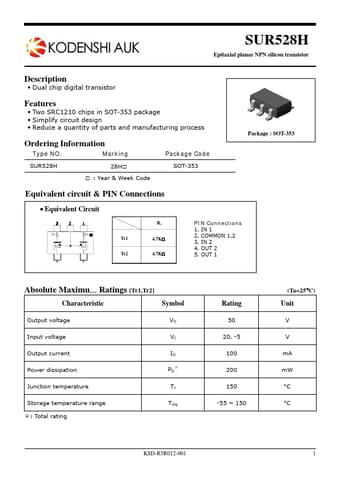

SUR528H - Epitaxial planar NPN silicon transistor

KODENSHI KOREA

Datasheet Details

Part number	SUR528H
Manufacturer	KODENSHI KOREA
File Size	258.61 KB
Description	Epitaxial planar NPN silicon transistor
Datasheet	SUR528H-KODENSHIKOREA.pdf

Dual chip digital transistor

Two SRC1210 chips in SOT-353 package.
Simplify circuit design.
Reduce a quantity of parts and manufacturing process Ordering Information Type NO. Marking SUR528H 28H.
: Year & Week Code Package Code SOT-353 Package : SOT-353 Equivalent circuit & PIN Connections.
Equivalent Circuit R1 Tr2 4 R1 Tr1 5 R1 Tr1 4.7KΩ Tr2 4.7KΩ PIN Connections 1. IN 1 2. COMMON 1,2 3. IN 2 4. OUT 2 5. OUT 1 Absolute Maximum Ratings [Tr1,Tr2] Characte.
