SUR524H - Epitaxial planar NPN silicon transistor

KODENSHI

📥 Download Datasheet

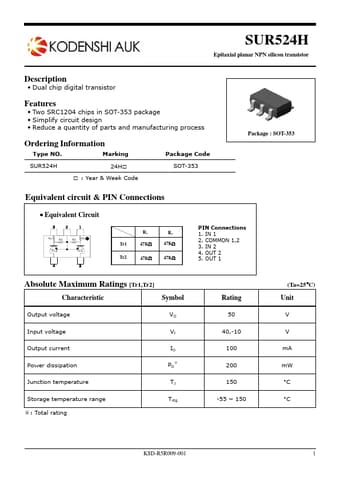

SUR524H Datasheet Preview — Preview of SUR524H PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	SUR524H
Manufacturer	KODENSHI
File Size	286.43 KB
Description	Epitaxial planar NPN silicon transistor
Datasheet	SUR524H-KODENSHI.pdf

SUR524H Product details

Description

Dual chip digital transistor

Features

Two SRC1204 chips in SOT-353 package.
Simplify circuit design.
Reduce a quantity of parts and manufacturing process Ordering Information Type NO. Marking SUR524H 24H.
: Year & Week Code Package Code SOT-353 Package : SOT-353 Equivalent circuit & PIN Connections.
Equivalent Circuit R1 R2 Tr2 R2 R1 Tr1 R1 R2 Tr1 47KΩ 47KΩ Tr2 47KΩ 47KΩ PIN Connections 1. IN 1 2. COMMON 1,2 3. IN 2 4. OUT 2 5. OUT 1 Absolute Maximum Ratings.
