SUR503EF Epitaxial Planar Type NPN Silicon Transistor

SUR503EF Description

Semiconductor SUR503EF Epitaxial Planar Type NPN Silicon Transistor .
Digital transistor Features. Two SRC1206 chips in SOT-563F package. With built-in bias resistors Ordering Information Ty.

SUR503EF Features

* Two SRC1206 chips in SOT-563F package
* With built-in bias resistors Ordering Information Type NO. SUR503EF Marking HH Package Code SOT-563F Outline Dimensions 3 R2 unit : 2 R1 mm 1 Tr2 R2 R1 Tr1 4 5 6 R1 Tr1 Tr2 4.7KΩ 4.7KΩ R2 47KΩ 47KΩ PIN Connections 1. Emitter 1 2.

📥 Download Datasheet

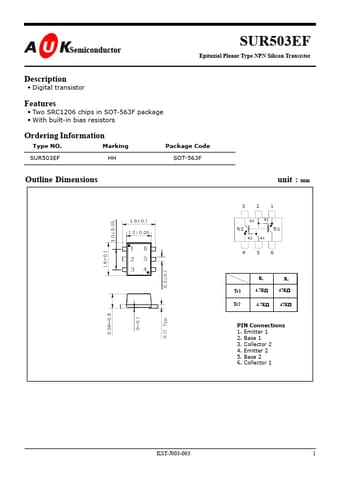

Preview of SUR503EF PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SUR503EF
Manufacturer
AUK
File Size
142.47 KB
Datasheet
SUR503EF_AUK.pdf
Description
Epitaxial Planar Type NPN Silicon Transistor
