SUR512EF - NPN/PNP Epitaxial Planar Silicon Transistor

AUK

📥 Download Datasheet

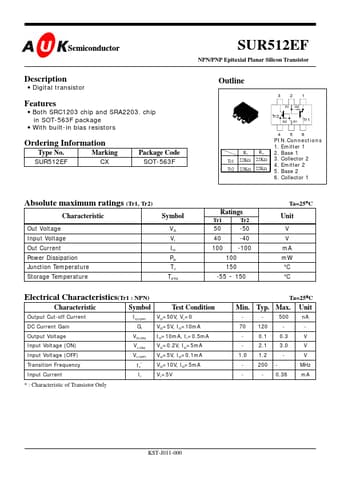

SUR512EF Datasheet Preview — Preview of SUR512EF PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	SUR512EF
Manufacturer	AUK
File Size	78.62 KB
Description	NPN/PNP Epitaxial Planar Silicon Transistor
Datasheet	SUR512EF_AUK.pdf

SUR512EF Product details

Description

Digital transistor Outline 3 2 R1 R2 1

Features

Both SRC1203 chip and SRA2203. chip in SOT-563F package.
With built-in bias resistors Tr2 R2 R1 Tr1 6 4 5 Ordering Information Type No. SUR512EF Marking CX Package Code SOT-563F Tr1 Tr2 R1 22KΩ 22KΩ R2 22KΩ 22KΩ PIN Connections 1. Emitter 1 2. Base 1 3. Collector 2 4. Emitter 2 5. Base 2 6. Collector 1 Absolute maximum ratings (Tr1, Tr2) Characteristic Out Voltage Input Voltage Out Current Power Dissipation Junction Temperature Storage Temperature Ta=25°C Symbol.
