SUR50N03-09P

N-Channel 30-V (D-S) MOSFET

SUR50N03-09P General Description

The attached spice model describes the typical electrical characteristics of the n-channel vertical DMOS. The subcircuit model is extracted and optimized over the

*55 to 125°C temperature ranges under the pulsed 0 to 10V gate drive. The saturated output impedance is best fit at the gate bias.

SUR50N03-09P Datasheet (178.25 KB)

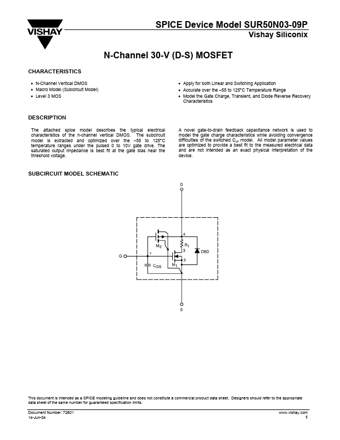

Preview of SUR50N03-09P PDF

Datasheet Details

Part number:

SUR50N03-09P

Manufacturer:

Vishay ↗ Siliconix

File Size:

178.25 KB

Description:

N-channel 30-v (d-s) mosfet.
SPICE Device Model SUR50N03-09P Vishay Siliconix N-Channel 30-V (D-S) MOSFET CHARACTERISTICS

* N-Channel Vertical DMOS

* Macro Model .
