SUR506EF - Epitaxial Planar Type PNP Silicon Transistor

AUK

📥 Download Datasheet

SUR506EF Datasheet Preview — Preview of SUR506EF PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	SUR506EF
Manufacturer	AUK
File Size	121.92 KB
Description	Epitaxial Planar Type PNP Silicon Transistor
Datasheet	SUR506EF_AUK.pdf

SUR506EF Product details

Description

Digital transistor

Features

Two SRA2205 chips in SOT-563F package.

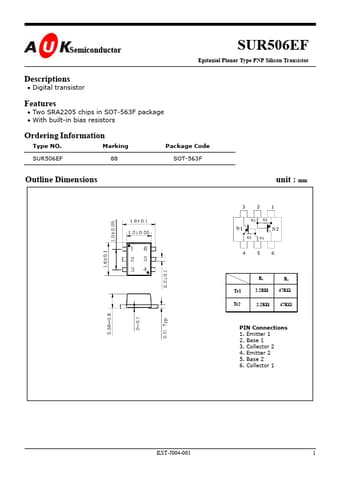

With built-in bias resistors Ordering Information Type NO. SUR506EF Marking 88 Package Code SOT-563F Outline Dimensions 3 R1 unit : mm 2 R2 1 Tr1 R2 R1 Tr2 4 5 6 R1 Tr1 Tr2 2.2KΩ 2.2KΩ R2 47KΩ 47KΩ PIN Connections 1. Emitter 1 2. Base 1 3. Collector 2 4. Emitter 2 5. Base 2 6. Collector 1 KST-J004-001 1 SUR506EF Absolute maximum ratings (Tr1, Tr2) Characteristic Out Voltage Input Voltage Out Current Power Dissipation Juncti.
