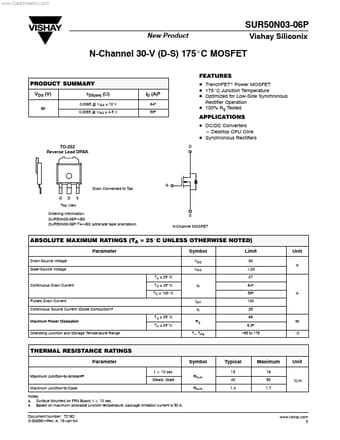

SUR50N03-06P Datasheet, Mosfet, Vishay Siliconix

SUR50N03-06P Features

• Mosfet PRODUCT SUMMARY VDS (V) 30 rDS(on) (W) 0.0065 @ VGS = 10 V 0.0095 @ VGS = 4.5 V ID (A)b 84b 59b D TrenchFETr Power MOSFET D 175_C Junction Temperature D Optimized for Low-Side Synchr

PDF File Details

Part number:

SUR50N03-06P

Manufacturer:

Vishay ↗ Siliconix

File Size:

95.22kb

Download:

📄 Datasheet

Description:

N-channel mosfet.

SUR50N03-06P Application

• Applications D DC/DC Converters
• Desktop CPU Core D Synchronous Rectifiers TO-252 Reverse Lead DPAK D Drain Connected to Tab G D S G T
