SUR70N02-04P

N-Channel MOSFET

Vishay Siliconix

Download Datasheet (94.89 KB)

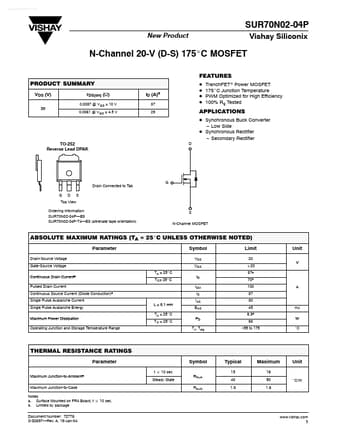

SUR70N02-04P Datasheet Preview — Preview of SUR70N02-04P Datasheet

Datasheet Details

Part number:

SUR70N02-04P

Manufacturer:

Vishay ↗ Siliconix

File Size:

94.89 KB

Description:

N-channel mosfet.
www.DataSheet4U.com SUR70N02-04P New Product Vishay Siliconix N-Channel 20-V (D-S) 175_C MOSFET F.
EATURES PRODUCT SUMMARY VDS (V) 20 rDS(on) (W) 0.0037 @ VGS = 10 V 0.0061 @ VGS = 4.5 V ID (A)a 37.

✔ SUR70N02-04P Features

PRODUCT SUMMARY VDS (V) 20 rDS(on) (W) 0.0037 @ VGS = 10 V 0.0061 @ VGS = 4.5 V ID (A)a 37 29 D D D D TrenchFETr Power MOSFET 175_C Junction Temperature PWM Optimized

✔ SUR70N02-04P Application

D Synchronous Buck Converter
Low Side D Synchronous Rectifier
Secondary Rectifier TO-252 Reverse Lead D
