SUR50N03-12P

N-Channel 30-V (D-S) MOSFET

SUR50N03-12P Features

* PRODUCT SUMMARY VDS (V) 30 rDS(on) (W) 0.012 @ VGS = 10 V 0.0175 @ VGS = 4.5 V ID (A)a 17.5 14.5 D TrenchFETr Power MOSFET D PWM Optimized D 100% Rg Tested APPLICATIONS D DC/DC Converters

* High-Side, Desktop CPU Core D Synchronous Rectifiers D TO-252 Reverse Lead DPAK Drain Connected

SUR50N03-12P Datasheet (67.57 KB)

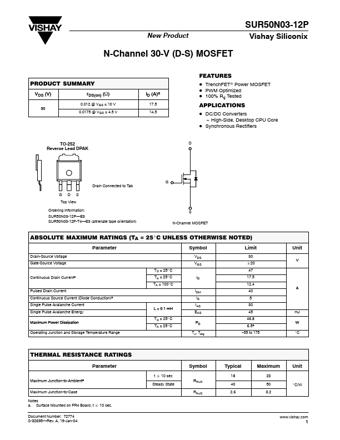

Preview of SUR50N03-12P PDF

Datasheet Details

Part number:

SUR50N03-12P

Manufacturer:

Vishay ↗ Siliconix

File Size:

67.57 KB

Description:

N-channel 30-v (d-s) mosfet.
