SUR501J - NPN/PNP Epitaxial Planar type Silicon Transistor

AUK

📥 Download Datasheet

SUR501J Datasheet Preview — Preview of SUR501J PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	SUR501J
Manufacturer	AUK
File Size	80.58 KB
Description	NPN/PNP Epitaxial Planar type Silicon Transistor
Datasheet	SUR501J_AUK.pdf

SUR501J Product details

Description

Digital transistor

Features

Both SRC1207 and SRA2207 Chips in SOT-363 package.

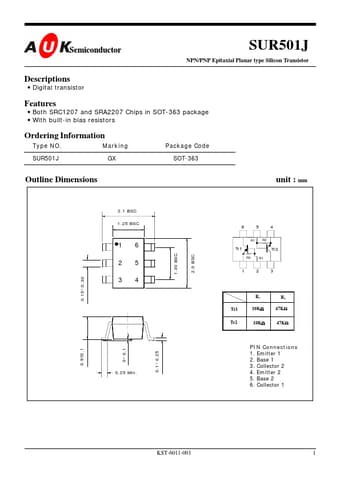

With built-in bias resistors Ordering Information Type NO. SUR501J Marking GX Package Code SOT-363 Outline Dimensions unit : mm 2.1 BSC 1.25 BSC 6 R1 5 R2 4 1 2 0.15~0.30 6 1.30 BSC 2.0 BSC Tr1 R2 R1 Tr2 5 4 1 2 3 3 R1 Tr1 Tr2 10KΩ 10KΩ R2 47KΩ 47KΩ 0.25 Min. PIN Connections 1. Emitter 1 2. Base 1 3. Collector 2 4. Emitter 2 5. Base 2 6. Collector 1 0.9±0.1 0~0.1 0.1~0.25 KST-6011-001 1 SUR501J J Absol.
