SUR510EF - Epitaxial Planar Type NPN Silicon Transistor

AUK

📥 Download Datasheet

SUR510EF Datasheet Preview — Preview of SUR510EF PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	SUR510EF
Manufacturer	AUK
File Size	48.22 KB
Description	Epitaxial Planar Type NPN Silicon Transistor
Datasheet	SUR510EF_AUK.pdf

SUR510EF Product details

Features

Digital transistor.
Two SRC1204 chips in SOT-563F package.

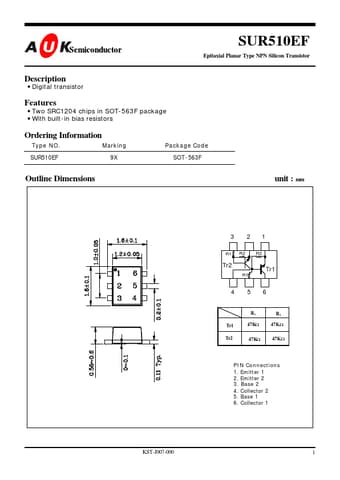

With built-in bias resistors Ordering Information Type NO. SUR510EF Marking 9X Package Code SOT-563F Outline Dimensions unit : mm 3 R1 R2 2 1 R2 Tr2 R1 Tr1 4 5 6 R1 Tr1 Tr2 47K Ω 47K Ω R2 47KΩ 47KΩ PIN Connections 1. Emitter 1 2. Emitter 2 3. Base 2 4. Collector 2 5. Base 1 6. Collector 1 KST-J007-000 1 SUR510EF Absolute maximum ratings [Tr1,Tr2 : NPN] Characteristic Out Voltage Input Voltage.
