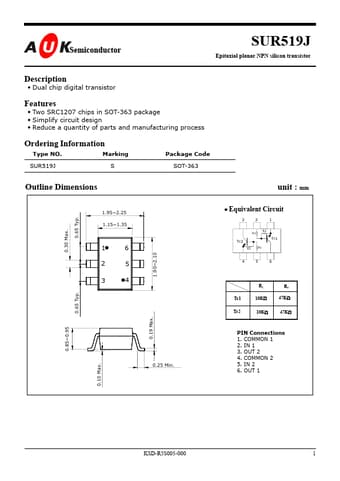

Part number:
SUR519J
Manufacturer:
AUK
File Size:
221.69 KB
Description:
Epitaxial planar npn silicon transistor.
* Two SRC1207 chips in SOT-363 package
* Simplify circuit design
* Reduce a quantity of parts and manufacturing process Ordering Information Type NO. Marking Package Code SUR519J S SOT-363 Outline Dimensions unit : mm 0.30 Max. 0.65 Typ. 1.95~2.25 1.15~1.35 16 25 3
SUR519J
AUK
221.69 KB
Epitaxial planar npn silicon transistor.
