SUR526H Epitaxial planar NPN silicon transistor

SUR526H Description

SUR526H Epitaxial planar NPN silicon transistor .
Dual chip digital transistor Features. Two SRC1206 chips in SOT-353 package. Simplify circuit design. Reduce a q.

SUR526H Features

* Two SRC1206 chips in SOT-353 package
* Simplify circuit design
* Reduce a quantity of parts and manufacturing process Ordering Information Type NO. Marking SUR526H 26H
* ①② ①Device Code ②Year&Week Code Package Code SOT-353 Package : SOT-353 Equivalent circui

📥 Download Datasheet

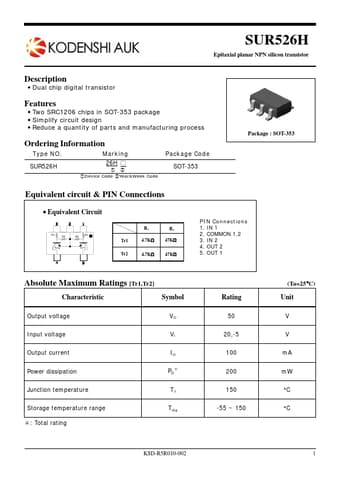

Preview of SUR526H PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SUR526H
Manufacturer
KODENSHI
File Size
266.03 KB
Datasheet
SUR526H-KODENSHI.pdf
Description
Epitaxial planar NPN silicon transistor
