SUR521H - Epitaxial Planar Type NPN Silicon Transistor

AUK

📥 Download Datasheet

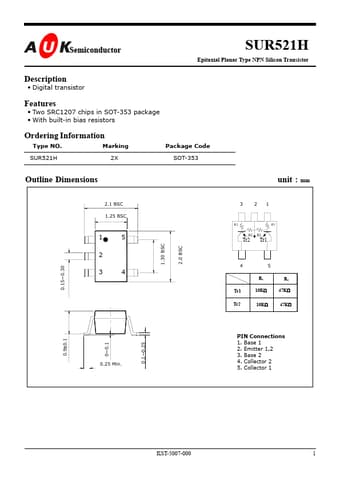

SUR521H Datasheet Preview — Preview of SUR521H PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	SUR521H
Manufacturer	AUK
File Size	178.28 KB
Description	Epitaxial Planar Type NPN Silicon Transistor
Datasheet	SUR521H_AUK.pdf

SUR521H Product details

Description

Digital transistor

Features

Two SRC1207 chips in SOT-353 package.
With built-in bias resistors Ordering Information Type NO. SUR521H Marking 2X Package Code SOT-353 Outline Dimensions 2.1 BSC 1.25 BSC R1 R1 R2 R2 R1 unit : 3 2 1 mm Tr2 1.
2 0.15~0.30 5 1.30 BSC 2.0 BSC R2 Tr2 Tr1 6 5 4 Tr2 4 5 Tr1 3 4 R1 Tr1 Tr2 10KΩ 10KΩ R2 47KΩ 47KΩ 0.25 Min. PIN Connections 1. Base 1 2. Emitter 1,2 3. Base 2 4. Collector 2 5. Collector 1 0.9±0.1 0.1~0.25 0~0.1 KST-5007-000 1 SUR521H Absolute.
