SUR522H - Epitaxial Planar Type NPN Silicon Transistor

AUK

📥 Download Datasheet

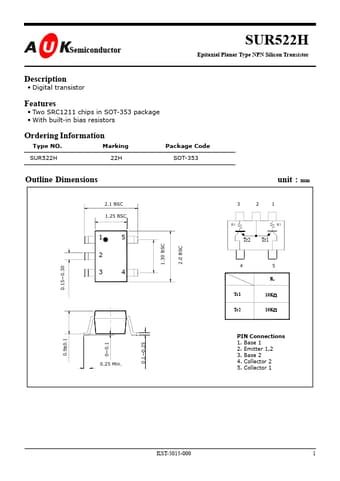

SUR522H Datasheet Preview — Preview of SUR522H PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	SUR522H
Manufacturer	AUK
File Size	171.73 KB
Description	Epitaxial Planar Type NPN Silicon Transistor
Datasheet	SUR522H_AUK.pdf

SUR522H Product details

Description

Digital transistor

Features

Two SRC1211 chips in SOT-353 package.
With built-in bias resistors Ordering Information Type NO. SUR522H Marking 22H Package Code SOT-353 Outline Dimensions 2.1 BSC 1.25 BSC R1 unit : 3 2 1 mm R1 Tr2 1.
2 0.15~0.30 5 1.30 BSC 2.0 BSC R2 Tr2 R1 Tr1 6 5 R1 4 Tr2 4 5 Tr1 3 4 Tr1 Tr2 10KΩ 10KΩ 0.25 Min. PIN Connections 1. Base 1 2. Emitter 1,2 3. Base 2 4. Collector 2 5. Collector 1 0.9±0.1 0.1~0.25 0~0.1 KST-5015-000 1 SUR522H Absolute maximum ratings.
