SUR502EF - Epitaxial Planar Type PNP Silicon Transistor

AUK

📥 Download Datasheet

SUR502EF Datasheet Preview — Preview of SUR502EF PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	SUR502EF
Manufacturer	AUK
File Size	118.56 KB
Description	Epitaxial Planar Type PNP Silicon Transistor
Datasheet	SUR502EF_AUK.pdf

SUR502EF Product details

Description

Digital transistor

Features

Two SRA2204 chips in SOT-563F package.

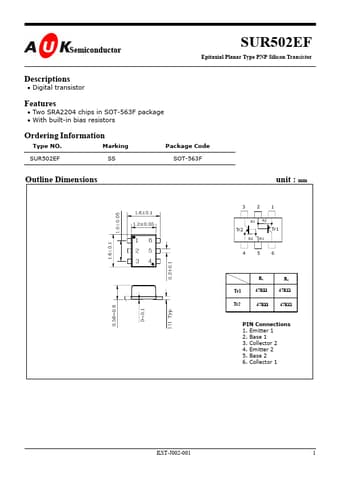

With built-in bias resistors Ordering Information Type NO. SUR502EF Marking SS Package Code SOT-563F Outline Dimensions 3 R1 unit : mm 2 R2 1 Tr2 R2 R1 Tr1 4 5 6 R1 Tr1 Tr2 47KΩ 47KΩ R2 47KΩ 47KΩ PIN Connections 1. Emitter 1 2. Base 1 3. Collector 2 4. Emitter 2 5. Base 2 6. Collector 1 KST-J002-001 1 SUR502EF Absolute maximum ratings (Tr1, Tr2) Characteristic Out Voltage Input Voltage Out Current Power Dissipation Junction.
