SUR540J - Epitaxial planar NPN silicon transistor

KODENSHI

📥 Download Datasheet

SUR540J Datasheet Preview — Preview of SUR540J PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	SUR540J
Manufacturer	KODENSHI
File Size	270.81 KB
Description	Epitaxial planar NPN silicon transistor
Datasheet	SUR540J-KODENSHI.pdf

SUR540J Product details

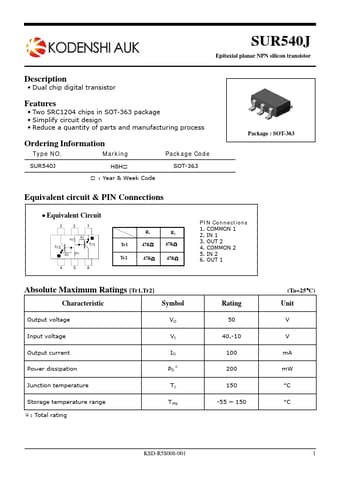

Description

Dual chip digital transistor

Features

Two SRC1204 chips in SOT-363 package.
Simplify circuit design.
Reduce a quantity of parts and manufacturing process Ordering Information Type NO. Marking SUR540J H8H.
: Year & Week Code Package Code SOT-363 Package : SOT-363 Equivalent circuit & PIN Connections.
Equivalent Circuit 32 1 R2 R1 Tr2 R2 R1 Tr1 456 R1 R2 Tr1 47KΩ 47KΩ Tr2 47KΩ 47KΩ PIN Connections 1. COMMON 1 2. IN 1 3. OUT 2 4. COMMON 2 5. IN 2 6. OUT 1 Abs.
