SUR540EF - NPN/PNP Epitaxial Planar Silicon Transistor

AUK

📥 Download Datasheet

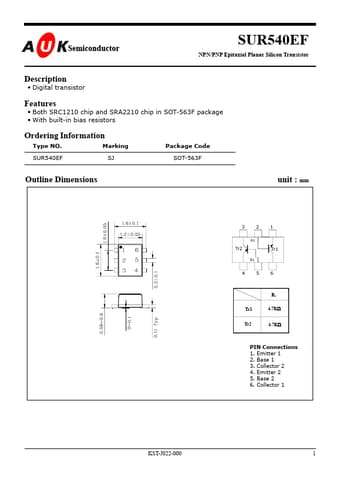

SUR540EF Datasheet Preview — Preview of SUR540EF PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	SUR540EF
Manufacturer	AUK
File Size	199.51 KB
Description	NPN/PNP Epitaxial Planar Silicon Transistor
Datasheet	SUR540EF_AUK.pdf

SUR540EF Product details

Description

Digital transistor

Features

Both SRC1210 chip and SRA2210 chip in SOT-563F package.
With built-in bias resistors Ordering Information Type NO. SUR540EF Marking SJ Package Code SOT-563F Outline Dimensions unit : mm 3 R1 2 1 Tr2 R1 Tr1 4 5 6 R1 Tr1 Tr2 4.7KΩ 4.7KΩ PIN Connections 1. Emitter 1 2. Base 1 3. Collector 2 4. Emitter 2 5. Base 2 6. Collector 1 KST-J022-000 1 SUR540EF Absolute maximum ratings (Tr1, Tr2) Characteristic Collector-Base Voltage Collector-Emitter Voltage Emitter-Base V.
