SUR546J Epitaxial planar PNP silicon transistor

SUR546J Description

SUR546J Epitaxial planar PNP silicon transistor .
Dual chip digital transistor Features. Two SRA2203 chips in SOT-363 package. Simplify circuit design. Reduce a q.

SUR546J Features

* Two SRA2203 chips in SOT-363 package
* Simplify circuit design
* Reduce a quantity of parts and manufacturing process Ordering Information Type NO. Marking SUR546J 8H8
* : Year & Week Code Package Code SOT-363 Package : SOT-363 Equivalent circuit &

📥 Download Datasheet

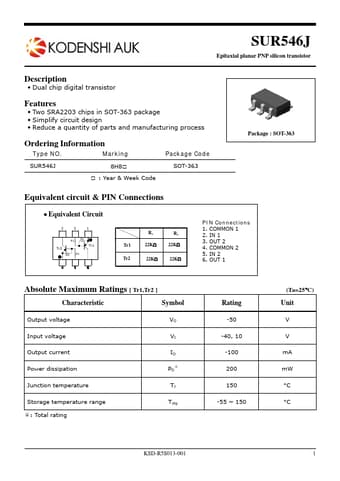

Preview of SUR546J PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SUR546J
Manufacturer
KODENSHI
File Size
271.94 KB
Datasheet
SUR546J-KODENSHI.pdf
Description
Epitaxial planar PNP silicon transistor
