SUR541EF - NPN Epitaxial Planar Silicon Transistor

AUK

📥 Download Datasheet

SUR541EF Datasheet Preview — Preview of SUR541EF PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	SUR541EF
Manufacturer	AUK
File Size	176.83 KB
Description	NPN Epitaxial Planar Silicon Transistor
Datasheet	SUR541EF_AUK.pdf

SUR541EF Product details

Description

Digital transistor

Features

Two SRC1211 chips in SOT-563F package.

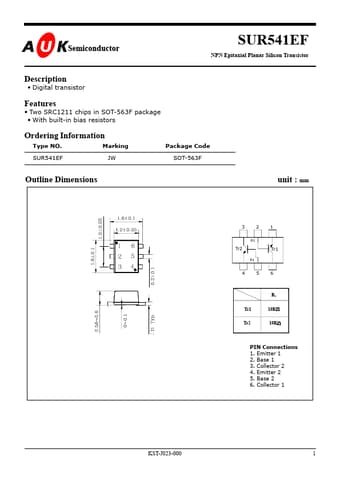

With built-in bias resistors Ordering Information Type NO. SUR541EF Marking JW Package Code SOT-563F Outline Dimensions unit : mm 3 R1 2 1 Tr2 R1 Tr1 4 5 6 R1 Tr1 Tr2 10KΩ 10KΩ PIN Connections 1. Emitter 1 2. Base 1 3. Collector 2 4. Emitter 2 5. Base 2 6. Collector 1 KST-J023-000 1 SUR541EF Absolute maximum ratings (Tr1, Tr2) Characteristic Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Cu.
