SUR545J - Epitaxial planar PNP silicon transistor

KODENSHI

📥 Download Datasheet

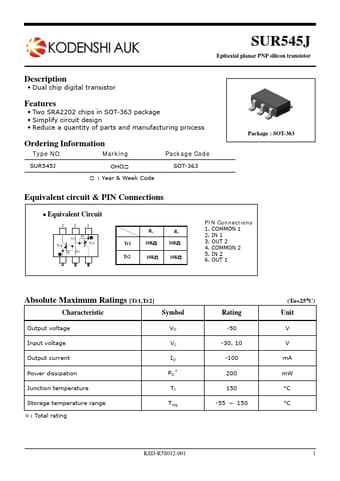

SUR545J Datasheet Preview — Preview of SUR545J PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	SUR545J
Manufacturer	KODENSHI
File Size	269.94 KB
Description	Epitaxial planar PNP silicon transistor
Datasheet	SUR545J-KODENSHI.pdf

SUR545J Product details

Description

Dual chip digital transistor

Features

Two SRA2202 chips in SOT-363 package.
Simplify circuit design.
Reduce a quantity of parts and manufacturing process Ordering Information Type NO. Marking SUR545J OHO.
: Year & Week Code Package Code SOT-363 Package : SOT-363 Equivalent circuit & PIN Connections.
Equivalent Circuit 32 1 R2 R1 Tr2 R2 R1 Tr1 R1 R2 Tr1 10KΩ 10KΩ Tr2 10KΩ 10KΩ PIN Connections 1. COMMON 1 2. IN 1 3. OUT 2 4. COMMON 2 5. IN 2 6. OUT 1 Absolu.
