SUR543J - Epitaxial Planar Type NPN Silicon Transistor

AUK

📥 Download Datasheet

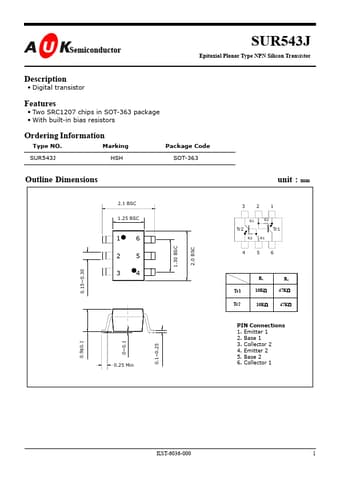

SUR543J Datasheet Preview — Preview of SUR543J PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	SUR543J
Manufacturer	AUK
File Size	172.42 KB
Description	Epitaxial Planar Type NPN Silicon Transistor
Datasheet	SUR543J_AUK.pdf

SUR543J Product details

Description

Digital transistor

Features

Two SRC1207 chips in SOT-363 package.
With built-in bias resistors Ordering Information Type NO. SUR543J Marking HSH Package Code SOT-363 Outline Dimensions 2.1 BSC 1.25 BSC Tr2 3 R1 unit : 2 R2 mm 1 Tr1 R2 R1.
1 2 0.15~0.30 6 1.30 BSC 2.0 BSC 5.
4 4 5 6 3 R1 Tr1 Tr2 10KΩ 10KΩ R2 47KΩ 47KΩ 0.25 Min PIN Connections 1. Emitter 1 2. Base 1 3. Collector 2 4. Emitter 2 5. Base 2 6. Collector 1 0.9±0.1 0~0.1 0.1~0.25 KST-6036-000 1 SUR543J Absolute m.
