SUR543EF - Epitaxial Planar Type NPN Silicon Transistor

AUK

📥 Download Datasheet

SUR543EF Datasheet Preview — Preview of SUR543EF PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	SUR543EF
Manufacturer	AUK
File Size	186.57 KB
Description	Epitaxial Planar Type NPN Silicon Transistor
Datasheet	SUR543EF_AUK.pdf

SUR543EF Product details

Description

Digital transistor

Features

Two SRC1204 chips in SOT-563F package.

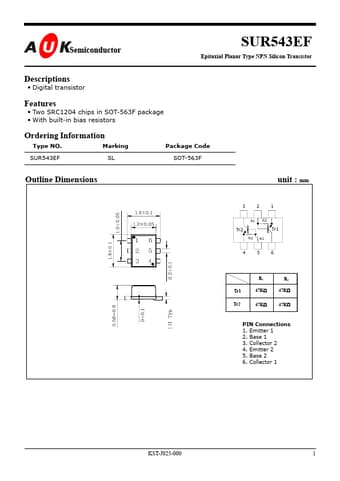

With built-in bias resistors Ordering Information Type NO. SUR543EF Marking SL Package Code SOT-563F Outline Dimensions 3 R1 unit : mm 2 R2 1 Tr2 R2 R1 Tr1 4 5 6 R1 Tr1 Tr2 47KΩ 47KΩ R2 47KΩ 47KΩ PIN Connections 1. Emitter 1 2. Base 1 3. Collector 2 4. Emitter 2 5. Base 2 6. Collector 1 KST-J025-000 1 SUR543EF Absolute maximum ratings (Tr1, Tr2) Characteristic Out Voltage Input Voltage Out Current Power Dissipation Junction.
