SUR544J - Epitaxial planar PNP silicon transistor

AUK

📥 Download Datasheet

SUR544J Datasheet Preview — Preview of SUR544J PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	SUR544J
Manufacturer	AUK
File Size	232.49 KB
Description	Epitaxial planar PNP silicon transistor
Datasheet	SUR544J-AUK.pdf

SUR544J Product details

Description

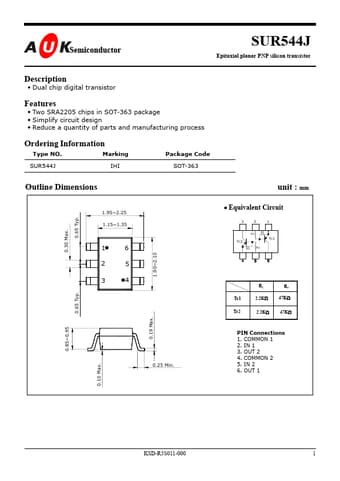

Dual chip digital transistor

Features

Two SRA2205 chips in SOT-363 package.
Simplify circuit design.
Reduce a quantity of parts and manufacturing process Ordering Information Type NO. Marking Package Code SUR544J IHI SOT-363 Outline Dimensions unit : mm 0.30 Max. 0.65 Typ. 1.95~2.25 1.15~1.35 16 25 34 1.90~2.10.
Equivalent Circuit 32 1 R2 R1 Tr2 R2 R1 Tr1 R1 R2 Tr1 2.2KΩ 47KΩ Tr2 2.2KΩ 47KΩ 0.65 Typ. 0.19 Max. 0.85~0.95 0.25 Min. PIN Connections 1. COMMON 1 2. IN 1 3. OUT.
