ML7396E, ML7396A Datasheet - LAPIS

ML7396E Sub GHz band short range wireless transceiver IC

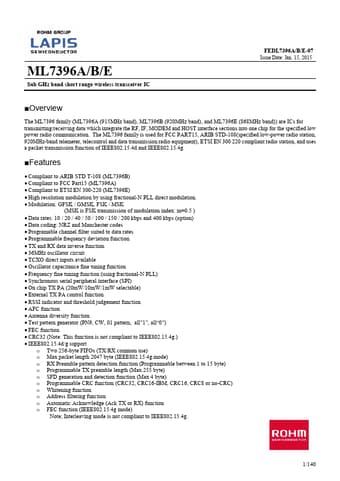

ML7396A/B/E Sub GHz band short range wireless transceiver IC FEDL7396A/B/E-07 Issue Date: Jan. 15, 2015 Overview The ML7396 family (ML7396A (915MHz band), ML7396B (920MHz band), and ML7396E (868MHz band)) are ICs for transmitting/receiving data which integrate the RF, IF, MODEM and HOST interface sections into one chip for the specified low power radio communication. The ML7396 family is used for FCC PART15, ARIB STD-108(specified low-power radio station, 920MHz-band telemeter, telecontro.

ML7396E Features

* Compliant to ARIB STD T-108 (ML7396B)

* Compliant to FCC Part15 (ML7396A)

* Compliant to ETSI EN 300-220 (ML7396E)

* High resolution modulation by using fractional-N PLL direct modulation.

* Modulation: GFSK / GMSK, FSK / MSK (MSK is FSK transmission of modu

ML7396A-LAPIS.pdf

ML7396E Datasheet Preview — This datasheet PDF includes multiple part numbers: ML7396E, ML7396A. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

ML7396E, ML7396A

Manufacturer:

LAPIS

File Size:

1.09 MB

Description:

Sub ghz band short range wireless transceiver ic.

Note:

This datasheet PDF includes multiple part numbers: ML7396E, ML7396A.
Please refer to the document for exact specifications by model.
