LC2730 3.5A CC&CV Buck Converter

LEADCHIP

LC2730 Description

.
LC2730 has an optimum input voltage, step-down converter that operates in either CV (Constant Output Voltage) mode or CC (Constant Output Current) mod.

LC2730 Features

* Build in High-Side and Low-Side MOSFET
* Max Output Current: 3.5A
* Constant Output Voltage: 5V
* Excellent Constant Current Accurate: ±7%
* Constant Voltage Accurate: ±1.5%
* No External Compensation Needed
* Jitter Function
* Efficiency: Up to 95%
* Line Compe

LC2730 Applications

* Car DVD
* Black Box
* Car Charger
* Industry Application TYPICAL APPLICATION VIN 8.5~32V C3 100nF C1 50V 47uF C2 50V 2.2uF VIN SW BS LC2730 VSEN ISEN GND GND 33uH RSEN 15mΩ VOUT 5V 3A C4 16V 220uF C5 16V 4.7uF GND PIN OUT & MARKING VIN SW LC2730 XXXX YW BS SW VSE

📥 Download Datasheet

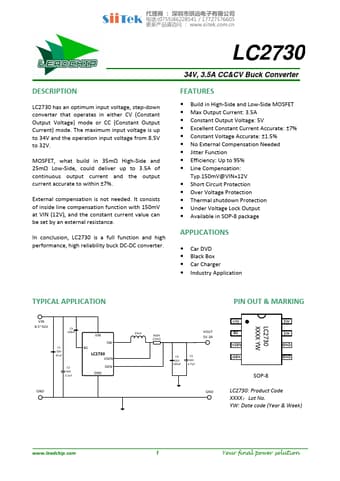

LC2730 Datasheet Preview — Preview of LC2730 PDF

Datasheet Details

Part number: LC2730
Manufacturer: LEADCHIP
File Size: 840.74 KB
Datasheet: LC2730-LEADCHIP.pdf
Description: 3.5A CC&CV Buck Converter
