LC2770

40V Synchronous Constant Current LED Driver

LC2770 Features

* Build in power MOSFETs

* Adjustable output current, IFB=150mV

* Constant current accuracy: ±3%

* No external compensation needed

* Internal thermal regulation

* Under voltage lock-out

* Minimum external components

* Available in SOP8 package APPLICATIONS

* LED l

LC2770 General Description

LC2770 is a 40V synchronous constant current buck LED driver, with 55mΩ High-Side and 20mΩ Low-Side MOSFETs integrated, minimal external component requirement and high efficiency, ideal for car lamp applications. Adjustable Output Current up to 3.5A with ±3% accuracy. RISEN resistor is used to set t.

LC2770 Datasheet (942.64 KB)

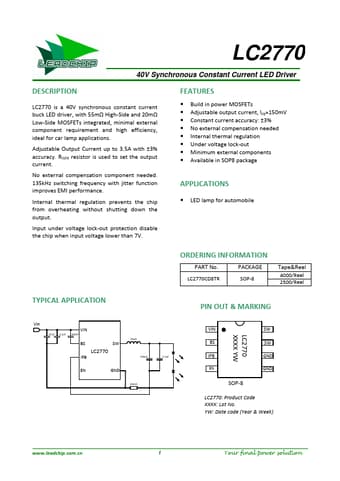

Preview of LC2770 PDF

Datasheet Details

Part number:

LC2770

Manufacturer:

LEADCHIP

File Size:

942.64 KB

Description:

40v synchronous constant current led driver.
