LC2741

4A CV and Dual CC Step-Down DC/DC Converter

LC2741 Features

* Build in High-Side and Low-Side MOSFET

* Max Output Current: 4A

* Constant Output Voltage: 5.1V

* Excellent Constant Current Accurate: ±7%

* Constant Voltage Accurate: ±1.5%

* No External Compensation Needed

* Jitter Function

* Efficiency: Up to 95%

* Line Compe

LC2741 General Description

LC2741 has an optimum input voltage, step-down converter that operates in either CV (Constant Output Voltage) mode or CC (Constant Output Current) mode. The maximum input voltage is up to 43V and the operation input voltage from 7V to 36V. MOSFET, what build in 75mΩ High-Side, could deliver up to 4A.

LC2741 Datasheet (1.17 MB)

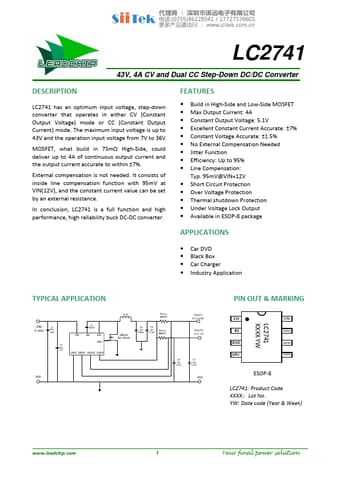

Preview of LC2741 PDF

Datasheet Details

Part number:

LC2741

Manufacturer:

LEADCHIP

File Size:

1.17 MB

Description:

4a cv and dual cc step-down dc/dc converter.
