LM185WH1-TLD2 Datasheet (LG)

LM185WH1-TLD2, LCD

ABSOLUTE MAXIMUM RATINGS ELECTRICAL SPECIFICATIONS ELECTRICAL CHARACTERISTICS INTERFACE CONNECTIONS ITEM Page 1 2 3 4 5 6 6 9 12 15 16 17 18 19 20 25 28 29 29 29 30 30 30 31 31 31 32 32 32 32 LVDS characteristics SIGNAL TIMING SPECIFICATIONS SIGNAL TIMING WAVEFORMS COLOR INPUT DATA REFERNECE POWE

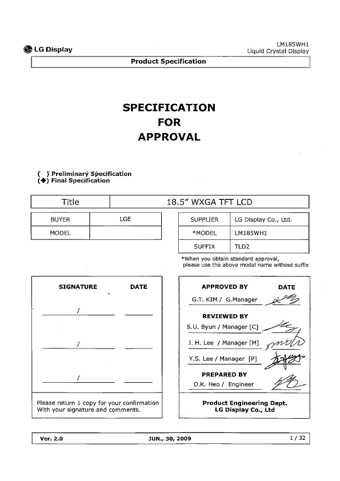

www.DataSheet.co.kr LM185WH1 Liquid Crystal Display Product Specification SPECIFICATION FOR APPROVAL ( ) Preliminary Specification ( ) Final Specification Title BUYER MODEL LGE 18.5” WXGA TFT LCD SUPPLIER MODEL SUFFIX LG Display Co., Ltd.

LM185WH1 TLD2 When you obtain standard approval, please use the above model name without suffix SIGNATURE DATE APPROVED BY G.

KIM / G.

Manager DATE / REVIEWED BY S.

Byun / Manager [C] / J.

Lee / Manager [M] Y.

Lee / Manager

LM185WH1-TLD2 Features

* Active screen size Outline Dimension Pixel Pitch Pixel Format Interface Color depth Luminance, white Viewing Angle (CR>10) Power Consumption Weight Display operating mode Surface treatments Ver. 2.0 18.51 inches (470.1mm) diagonal 430.4(H) x 254.6(V) x 13.0(D) mm(Typ.) 0.10

* RGB(H)mm x 0.30(V)mm
