LP150X1-B2AR - Liquid Crystal Display

The LP150X1-B2AR by LG is a Liquid Crystal Display. Below is the official datasheet preview.

LP150X1-B2AR Liquid Crystal Display by LG - Datasheet Preview — Official preview page of the **LP150X1-B2AR** Liquid Crystal Display datasheet (LG).

Datasheet Details

Part number	LP150X1-B2AR
Manufacturer	LG
File Size	304.53 KB
Description	Liquid Crystal Display
Datasheet	LP150X1-B2AR_LG.pdf

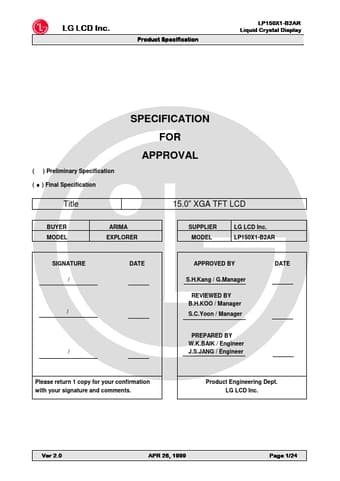

Additional preview pages of the LP150X1-B2AR datasheet.

LP150X1-B2AR Product details

Description

MAXIMUM RATINGS ELECTRICAL SPECIFICATIONS ELECTRICAL CHARACTERISTICS INTERFACE CONNECTION SIGNAL TIMING SPECIFICATIONS SIGNAL TIMING WAVE FORM COLOR INPUT DATA REFERENCE POWER SEQUENCE Vcc DIP CONDITION www.DataSheet.net/ ITEM Page 1 2 3 4 5 6 6 7 9 10 11 12 13 14 15 18 19 19 19 20 20 21 OPTICAL SPECIFICATIONS MECHANICAL CHARACTERISTICS RELIABILITY INTERNATIONAL STANDARDS SAFETY EMC PACKING DESIGNATION OF LOT MARK PRECAUTIONS APPENDIX A-1 A-2 A-3 A-4 OPTICAL CHARACTERISTIC MEASUREMENT EQUIP

Features

The following are general feature of the model LP150X1 LCD; Active screen size 15.0inches (38.1cm) diagonal Outline dimensions 315.5(H) × 242.3(V) × 7.0(D) mm (typ) Pixel pitch 0.297 mm × 0.297 mm Pixel format 1024 horiz. By 768 vert. pixels RGB stripe arrangement Color depth 6-bit, 262,144 colors 2 Luminance,White 120 cd/m (typ) Power Consumption Total 4.82Watt,typ (1.22Watt @Vcc, 3.6Watt@120nit,Lamp) Weight 685g (typ) Display operating mode transmissive mode, normally white Surface treatments.
