LP156WH1-TLC1 - LCD

📥 Download Datasheet

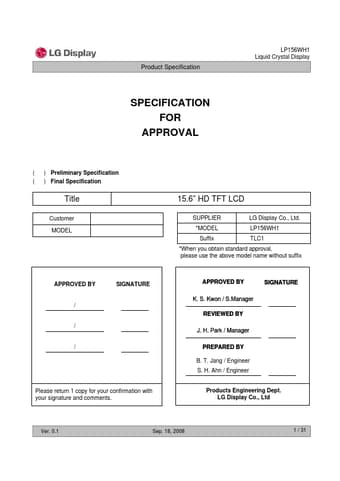

LP156WH1-TLC1 Datasheet Preview — Preview of LP156WH1-TLC1 PDF

Datasheet Details

Part number	LP156WH1-TLC1
Manufacturer	LG
File Size	464.50 KB
Description	LCD
Datasheet	LP156WH1-TLC1_LG.pdf

LP156WH1-TLC1 Product details

Description

ABSOLUTE MAXIMUM RATINGS ELECTRICAL SPECIFICATIONS ELECTRICAL CHARACTREISTICS INTERFACE CONNECTIONS LVDS SIGNAL TIMING SPECIFICATION SIGNAL TIMING SPECIFICATIONS SIGNAL TIMING WAVEFORMS COLOR INPUT DATA REFERNECE POWER SEQUENCE OPTICAL SFECIFICATIONS MECHANICAL CHARACTERISTICS APPENDIX.

Features

Active Screen Size Outline Dimension Pixel Pitch Pixel Format Color Depth Luminance, White Power Consumption Weight Display Operating Mode Surface Treatment RoHS Comply 15.6 inches diagonal 359.3(H, typ) 0.252mm 209.5(V, typ) 6.2(D,max) [mm] 0.252 mm 1366 horiz. By 768 vert. Pixels RGB strip arrangement 6-bit, 262,144 colors 220 cd/m2(Typ.5 point) Total 4.75 Watt(Typ. ) @ LCM circuit 1.3 Watt(Typ. ), B/L input 4.45 Watt(Typ. ) 510g (Max. ) Transmissive mode, normally white Hard Coating(3H), Glare t.
