LP156WH2-TLAB Datasheet - LG

LP156WH2-TLAB Liquid Crystal Display

ABSOLUTE MAXIMUM RATINGS ELECTRICAL SPECIFICATIONS ELECTRICAL CHARACTREISTICS INTERFACE CONNECTIONS LVDS SIGNAL TIMING SPECIFICATION SIGNAL TIMING SPECIFICATIONS SIGNAL TIMING WAVEFORMS www.DataSheet.net/ ITEM Page 1 2 3 4 5 6-7 8 9-10 11 11 12 13 14-16 17-20 21-23 24 COLOR INPUT DATA REFERNECE .

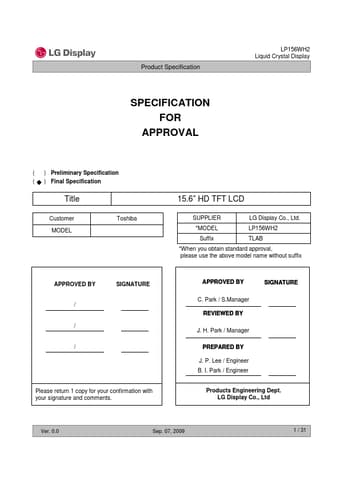

LP156WH2 Liquid Crystal Display Product Specification SPECIFICATION FOR APPROVAL ( ) Preliminary Specification ( ) Final Specification Title Customer MODEL Toshiba 15.6” HD TFT LCD SUPPLIER MODEL Suffix www.DataSheet.net/ LG Display Co., Ltd. LP156WH2 TLAB When you obtain standard approval, please use the above model name without suffix APPROVED BY SIGNATURE APPROVED BY C. Park / S.Manager SIGNATURE / REVIEWED BY / J. H. Park / Manager PREPARED BY J. P. Lee / Engine.

LP156WH2-TLAB Features

* Active Screen Size Outline Dimension Pixel Pitch Pixel Format Color Depth Luminance, White Power Consumption Weight Display Operating Mode Surface Treatment RoHS Comply Ver. 0.0 15.6 inches diagonal 359.3(H, typ) × 209.5(V, typ) × 5.5(D,max) [mm] 0.252mm × 0.252 mm 1366 horiz. By 768 vert. Pixels RG
