DTA144EKA, DTA144EE - PNP Digital Transistor

LGE

📥 Download Datasheet

DTA144EKA Datasheet Preview — This datasheet PDF includes multiple part numbers: DTA144EKA, DTA144EE. Please refer to the document for exact specifications by model.

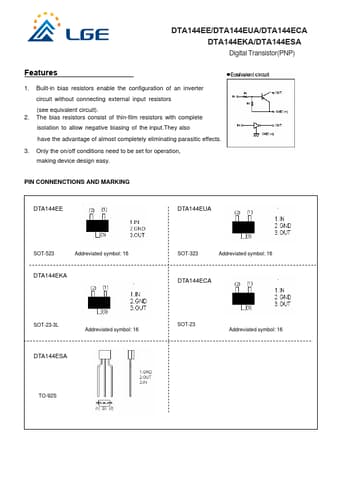

datasheet Preview Page 2

Datasheet Details

Part number: DTA144EKA, DTA144EE
Manufacturer: LGE
File Size: 150.38 KB
Datasheet: DTA144EE-LGE.pdf
Description: PNP Digital Transistor
Note: This datasheet PDF includes multiple part numbers: DTA144EKA, DTA144EE.
Please refer to the document for exact specifications by model.

DTA144EKA Product details

Features

1. Built-in bias resistors enable the configuration of an inverter circuit without connecting external input resistors (see equivalent circuit). 2. The bias resistors consist of thin-film resistors with complete isolation to allow negative biasing of the input. They also have the advantage of almost completely eliminating parasitic effects. 3. Only the on/off conditions need to be set for operation, making device design easy. PIN.
