DTA144ESA, DTA144EE Datasheet - LGE

DTA144ESA PNP Digital Transistor

DTA144ESA Features

* 1. Built-in bias resistors enable the configuration of an inverter circuit without connecting external input resistors (see equivalent circuit). 2. The bias resistors consist of thin-film resistors with complete isolation to allow negative biasing of the input.They also have the advantage of almost

DTA144EE-LGE.pdf

This datasheet PDF includes multiple part numbers: DTA144ESA, DTA144EE. Please refer to the document for exact specifications by model.

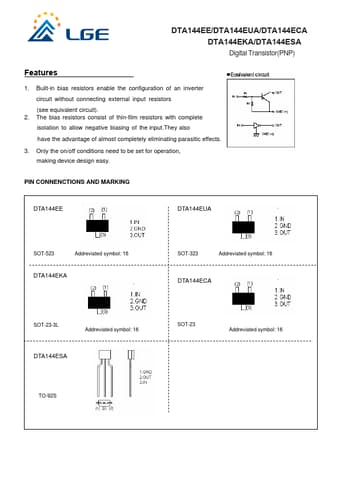

DTA144ESA Datasheet Preview Page 2

Datasheet Details

Part number:

DTA144ESA, DTA144EE

Manufacturer:

LGE

File Size:

150.38 KB

Description:

Pnp digital transistor.

Note:

This datasheet PDF includes multiple part numbers: DTA144ESA, DTA144EE.
Please refer to the document for exact specifications by model.
