* Rating to 1000V PRV Ideal for printed circuit board Low forward voltage drop, high current capability. Reliable low cost construction utilizing molded plastic technique results in inexpensive product The plastic material has UL flammability classification 94V-0 UL recognized file # E95060 MECHANICAL
DF1510M
LITE-ON
82.13 KB
Glass passivated bridge rectifiers.
LITE-ON SEMICONDUCTOR

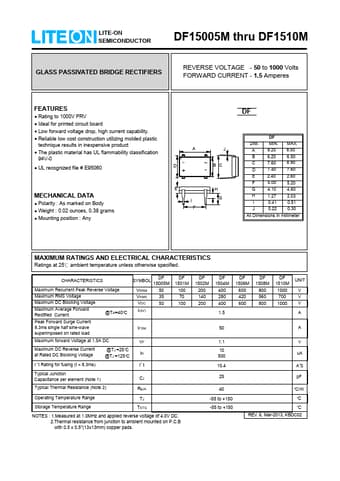

DF15005M thru DF1510M
GLASS PASSIVATED BRIDGE RECTIFIERS
REVERSE VOLTAGE - 50 to 1000 Volts FORWARD CURRENT - 1.5 Amperes
FE.
